Wiring Duct and Slotted Cable Tray for Panel Builds and PVC Underground Runs: A Buyer's Guide to Slots, Widths and Wall Thickness

An enquiry that opens with panduct wiring duct or panduit wiring duct rarely names a brand. It describes a profile: the slotted PVC channel with a snap-on lid that one US maker popularised and the world now buys under generic part numbers. Read it that way and quoting stays simple, and the sample you send finally fits the panel.

A panduit wiring duct request hides three questions: slot pitch, the gap between fingers that decides how often a conductor can leave the run; the outside width and height; and whether the cover is solid or slotted. Buyers in Nigeria, Ghana, Saudi Arabia, the UAE, Malta and Thailand settle pitch first, because it shapes the panel.

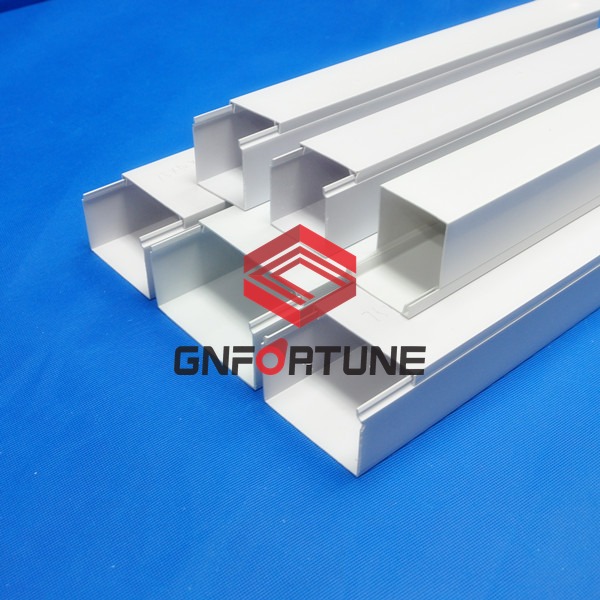

Inside a control panel, slotted tray in its narrow form is the wiring duct that walks conductors to breakers and terminals. The same profile sits in machine tools, lift cabinets and inverter enclosures, where wires are added long after commissioning. Sizes run from about 25x25mm to 100x100mm.

Outside the cabinet the idea scales up. A wider slotted duct — a slotted cable tray along a plant-room wall or a riser — keeps power and data apart in one channel, so a later tap means lifting a cover, not chasing a wall. Profiles are extruded in UV-stabilised, flame-retardant PVC, with couplers, angles and tees to match.

All of it comes from one plant at G AND N FORTUNE LIMITED. 35 extrusion lines run the duct and conduit profiles, and 55 injection molding machines produce the covers, couplers, angles, tees, end caps and junction boxes, so a container ships one colour and one tolerance instead of three suppliers' compromises.

Production follows British Standard (BS) requirements, and 20 years of export work shapes how orders are packed. Custom lengths, part numbers printed on the duct, colour matched to an RAL card and OEM cartons are routine — which is why contractors in West Africa and the Gulf reorder instead of retendering.

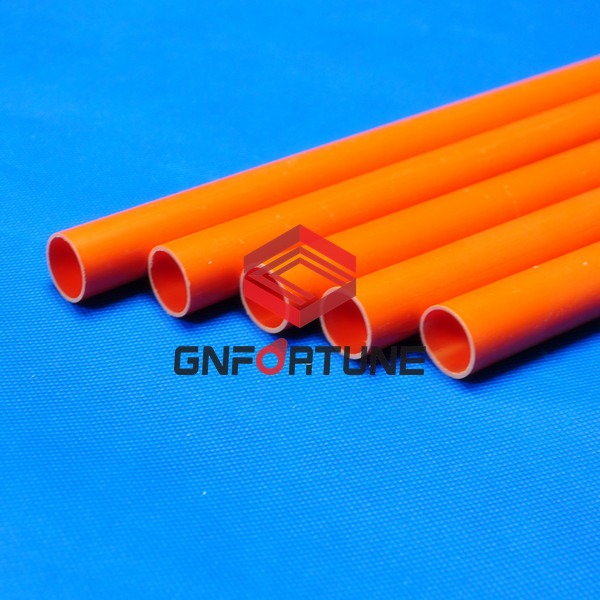

Most jobs also go below grade. PVC underground duct carries the same system out to a gate, a substation or a street light: rigid pipe from 20mm to 160mm, a heavier wall than surface conduit, solvent-cemented joints and a draw rope left inside for the pull. Every draw pit stays accessible.

Order both halves in one line and they match. State the duct width and slot pitch, the conduit diameter and wall class, whether the run is buried, exposed or indoors, plus the fitting list — then ask G AND N FORTUNE LIMITED for drawings, samples and one packing list backed by British Standard certification.
